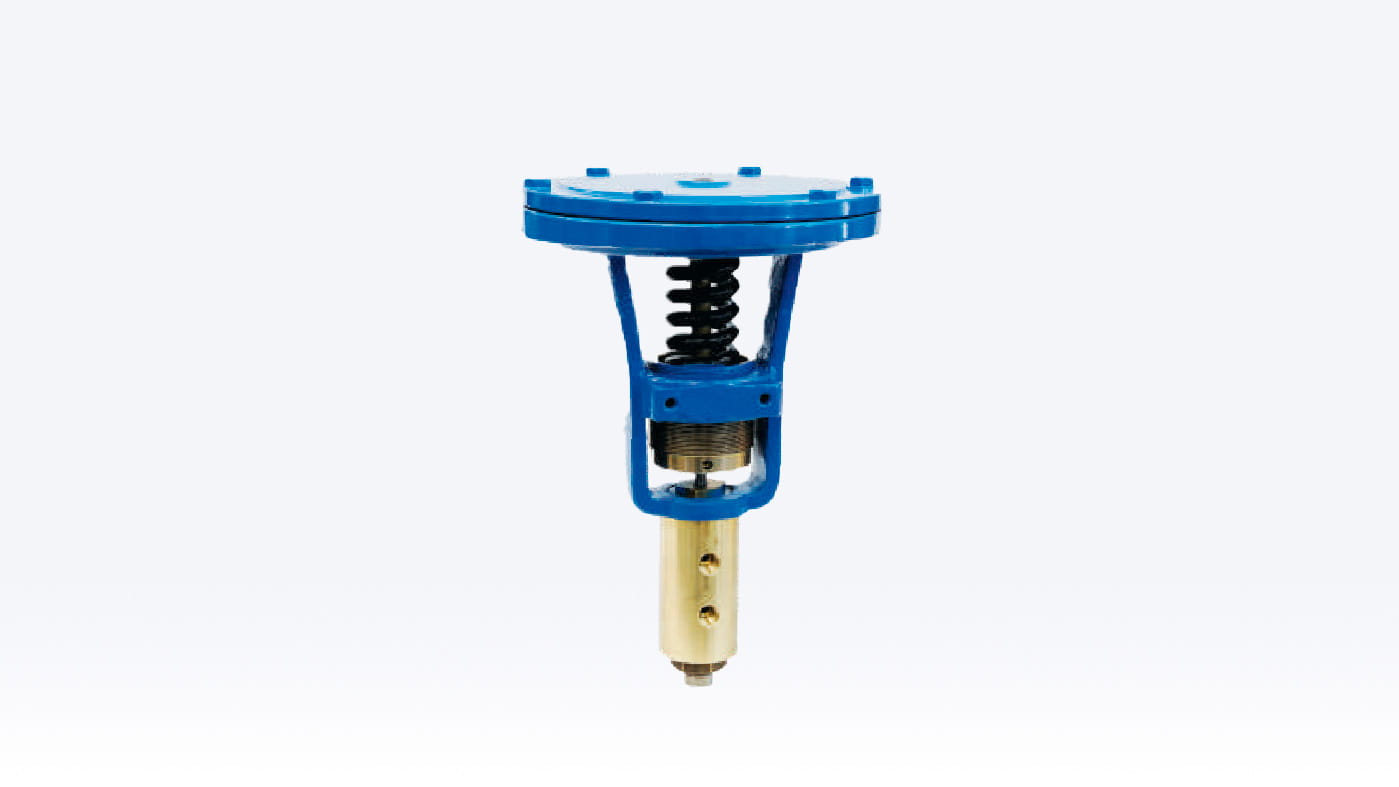

Pilot Pressure Control
Overview
The self-operated reducing valves, with precise adjustment, are designed to relieve and reduce pressure in lines of steam, water oil, air, gas and other liquids. They are used to regulate the pressure upstream or downstream of the valve and ensure its stability
Model |
Type |
Materials |
Diaphragm |
Spring band |
| 45 Series | Pilot for Control of Pneumatic Control Valve Actuators |
Brass or stainless steel | Nitrile, metallic or PTFE rubber |
2 A 600 psig |
Technical Documentation
Title
Controlador de Pressão Série 45
language
Brasil
reference number
TI-P368-01-EN-ISS1
Download
Installation Documentation
| document | language | reference number | download |
|---|---|---|---|
| Pressure Control Pilot 45 Series | English | IM-P418-08-EN-ISS1 | Download PDF |
| Piloto Controlador de Pressão | Brasil | M-P418-07-PT-ISS1 | Download PDF |
