Insulation jackets
Insulation Jackets Provide Fast Energy Savings
Insulation of individual, replaced or retrofitted fittings is often expensive and complicated. Conventional insulation systems usually do not allow quick and easy maintenance or testing of the fittings.
Spirax Sarco offers tailor-made thermal insulation solutions, especially for fittings where easy and quick access is a must. In addition to the simple assembly during installation, the thermal insulation can be removed and reassembled at any time without damage. The mineral wool insulation can be used up to an application temperature of 230 °C. Due to the surface of silicone-coated fiberglass fabric, the insulation jackets can be installed in wet and outdoor areas that require thorough cleaning.

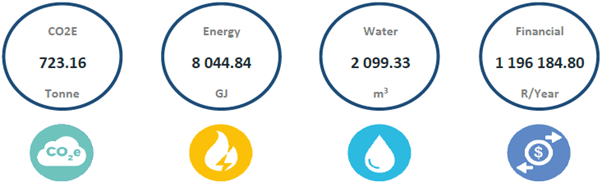

Example of the Potential Energy Savings:
Benefits of insulation jackets
Easy and quick to install
Easy to disassemble and reassemble. Easy installation without tools.
Best insulation properties
Minimise heat loss. Best insulation properties when using special mineral wool.
Extended lifespan
Extended service life of system components, the formation of thermal bridges is avoided.
Operating protection
Operational protection restored immediately after maintenance.
High-quality processing, insensitive surface
No wrinkling, can be opened and closed at least 5,000 times. Surface made of glass fiber fabric (silicone coated), therefore insensitive and weatherproof.
Work safety
Improved occupational safety by reducing burns, thanks to surface temperatures of mostly 50 °C or less.
Reduce Energy Costs, Increase Safety
Avoid burns and energy losses with reusable insulation jackets
Burns are one of the most common workplace injuries for people who come into contact with steam systems. With Spirax Sarco's handy reusable insulation jackets, you effectively reduce the risks in your work environment and at the same time significantly save energy.
Identify energy thieves - isolate your valves
A hot valve is an occupational safety risk, and a hot uninsulated valve also wastes large amounts of energy. However, both problems can be solved with Spirax Sarco insulation jackets.
The easiest way to significantly save energy
Did you know that the heat loss of an uninsulated valve can correspond to the annual energy consumption of an average household. Spirax Sarco can help you calculate the payback period and insulate the valves with reusable, easy-to-install isolation jackets.
Book your assessment
Interested in a FREE heat-loss assessment?
Are you looking for an energy project with a short payback period? Our insulation projects often have a payback period of less than 12 months. Don't wait until tomorrow - contact us today for a FREE heat-loss assessment.
Complete the Form and one of our Sales Engineers will get in contact to arrange assessment.
